Introduction of Wooden Stringer Pallet Board Chamfer Beveling Machine

Wooden Stringer Pallet Board Chamfer Beveling Machine is used for making chamfer in wood pallet bottom deck board, such easy for fork go in and out. Thoyu holds expertise in providing superior grade Wooden Stringer Pallet Board Chamfer Beveling Machine to our precious customers. Our offered Wooden Stringer Pallet Board Chamfer Beveling Machine is widely appreciated by our customers, which are situated all round the world. Known for its best quality, clients can avail this Wooden Stringer Pallet Board Chamfer Beveling Machine at industry leading prices from us.

Wood pallet type:

1. Stringer pallet

2. Block pallet

3. Other special pallets

4. Euro pallet

5. American pallet

6. Other pallets.

How does Wooden Stringer Pallet Board Chamfer Beveling Machine work?

1. When Wooden Stringer Pallet Board Chamfer Beveling Machine is running, the worker puts the whole piece of wood to be processed on the operation table.
2. When placing the wood, it is necessary to pay attention to placing the wood in the feeding trough of Wooden Stringer Pallet Board Chamfer Beveling Machine operation table to prevent the wood material from shifting during the movement.
3. The wood is pushed forward at a constant speed to the cutting blade as the chain runs, and the blade rotates the milling edge.
4. The wood from the side of the milling is pushed along with the running chain to the finished product discharge chute, and the milling process is completed.

Features of Wooden Stringer Pallet Board Chamfer Beveling Machine

1. Chamfer function: the wooden pallet bottom plate automatically pours out the corners, which is convenient to push the cart, the forklift enters and leaves.
2. Easy Operation: 1 worker.
3. Capacity: 700 pieces/hour
4. Wood board specification: 80-145 mm
5. Working mode: automatic feeding
6. Chamfer length range: 1300 mm
7. Chamfer thickness: 30-40 mm
8. Chamfer width: 90-130 mm
9. Working mode: continuous automatic feeding and discharging, 2 sides at the same time out
10. Blade material: alloy

Technical Parameters of Wooden Stringer Pallet Board Chamfer Beveling Machine

Advantages of Wooden Stringer Pallet Board Chamfer Beveling Machine

1. Simple machine maintenance of Wooden Stringer Pallet Board Chamfer Beveling Machine—material hold downs lift off for ease of cleaning.
2. Dual side 10” diameter vacuum connection allows for swift evacuation of wood particles.
3. Programmable on/off control for upstream equipment promotes safe operation of Wooden Stringer Pallet Board Chamfer Beveling Machine.
4. Big motor power, fit for hardwood cutting.
5. Blades of Wooden Stringer Pallet Board Chamfer Beveling Machine is placed on up/down abroad/spindle.
6. Chain drive automatically pulls one board from the infeed hopper, through the cutter head, and re-stacks it in the outfeed hopper.
7. Adjusting Wooden Stringer Pallet Board Chamfer Beveling Machine for a new board length is very easy. Simply change the chamfer length adjustment cam and the outfeed hopper.
8. Adjusting the board width is easy, too.
9. All electric. No air. No hydraulics. No proximity switches or limit switches! Built out of solid, state-of-the-art components.

wooden pallet chamfer machine

wooden pallet beveling machine

pallet beveling machine

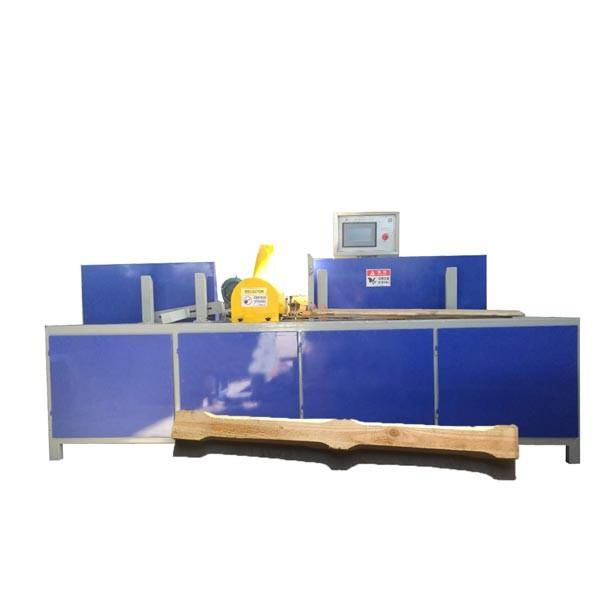

Wooden Stringer Pallet Board Chamfer Beveling Machine Images
