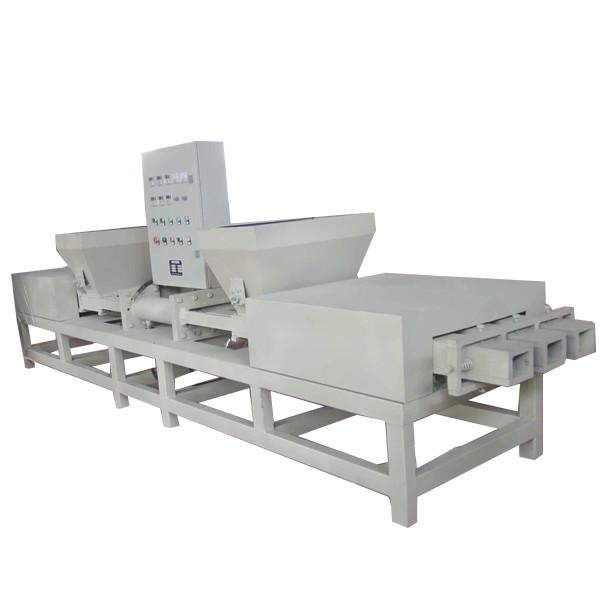

Compressed Wood Chips Pallet Block Extruding Line Machines
Introduction of Compressed Wood Chips Pallet Block Extruding Line Machines
Compressed Wood Chips Pallet Block Extruding Line Machines is the production line of extruding pallet blocks for wood pallets.
Equipment disposition:
Generally, four pallet block extruding machines are a production line. And other machines are necessary, such as wood crushing machine, wood drying machine, glue mixing machine, and so on.
1) Wood crushing machine: it is necessary to crush the raw material into 5*5 mm and smaller than 200 mm for further processing. If the raw materials are bigger than 5*5 mm, it should equip with wood crushing machine.
2) Wood drying machine: to dry the moisture under 15% before mixing the material with glue. If the moisture of materials is above 15%, wood drying machine is needed.
3) Glue mixing machine: to mix the material with glue evenly.
4) Pallet block extruding machine: to make the wood pallet block.
Personnel disposition:
Production personnel 4-5 people per shift. And raw material sort (screening) section and drying section spreads 2-3 people, and the extruding section needs 2 people (one person may look at two machines).
Equipment investment recoupment period: 10 -- 12 months.
Our factory is responsible for technical training and provides the after-sale service.
Technical Parameters of Compressed Wood Chips Pallet Block Extruding Line Machines
We have many models of wood pallet hot-press machine; the different models can make different sizes.
Besides, you could customize the mold for other shapes of wood waste compressed products.
| Pallet Block Extruding Machine |
| Model | TYS | TYD | TYT |
| Size (mm) | 4800*780*1320 | 4800*780*1320 | 4800*900*1420 |
| Length and width of blcok (mm) | 75-145 |
| Power (kW) | 16.86 | 22.26 | 30.26 |
| Density (kg/m3) | 550-600 |
| Production efficiency (m3/24 h) | 2-5 | 3-6 | 5-9 |
| Dimension with saw (mm) | 8000*600*1500 | 8000*700*1500 | 8000*700*1500 |
| Weight (kg) | 1000 | 1500 | 2000 |
| Block size: 75-145 mm in width, 75-145 mm in length. |
Advantages of Compressed Wood Chips Pallet Block Extruding Line Machines 1. Energy and labor-saving.
2. Simple design is easy for operating.
3. Lest investment for the investor and get the benefits in a short time.
4. High temperature, high pressure can extrude the materials into pallet block one time, standard size.
5. The final products are high density, and strong enough.
6. Compressed Wood Chips Pallet Block Extruding Line Machines is widely used for packaging companies and blocks producing factories.
Final pallet block features
1. The final product could get the E1 grade.
2. Free fumigation, and free quarantine; do not need any test before export.
3. Waterproofs, insect prevention, and protection against termites, antisepticise, and do not easy to burn.
4. It can be forked from four directions, easy to use the pallets.
5. The pallet block could be solid without a hole in the center, also could be hollow.
6. Block sizes could be customized from 75 mm to 145 mm. And the common sizes are 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm.
