Automatic Hot Press Thermoforming Wood Pallet Machines
Introduction of Automatic Hot Press Thermoforming Wood Pallet Machines
Automatic Hot Press Thermoforming Wood Pallet Machines is also called wood pallet machine, wood pallet molding machine, and hot press wood pallet machine. Automatic Hot Press Thermoforming Wood Pallet Machines is a new type of one-time forming machine, which produces molded wood pallets using wood wastes.
Press wood pallet, the full name is the plant fiber molded industrial plane pallet. Normally wood chips and plant straws are the raw materials. We tested different materials and expanded the range to wood waste board sawdust and shavings, waste pallets, bagasse, wheat straw and cotton straw, waste furniture, and so on.
Press wood pallets have a smooth surface and bearing force balance in vertical and horizontal. There are 4-entry single-face pallets, double-layer pallet, 2-way entry, and pallet without bottom skid, which can meet many kinds of transportation.
With the dwindling of the forest resources, fully taking advantage of small-diameter timber, branches, and wood processing residues is becoming more and more important and press wood pallets come into being, which exactly is the future of pallets.
Technical Parameters of Automatic Hot Press Thermoforming Wood Pallet Machines:
| Model | TY-1000 | TY-1200 |
| Voltage | 220 V/380 V, 50 Hz, three-phase | 220 V/380 V, 50 Hz, three-phase |
| Capacity | 240 pieces/day (24 hours) | 240 pieces /day (24 hours) |
| Power | 18.5 kW | 18.5 kW |
| Hydraulic cylinder diameter | 350 mm | 380 mm |
| Hydraulic cylinder quantity | 4 pieces | 4 pieces |
| Pressure | 0-1000 tons (adjustable) | 0-1200 tons (adjustable) |
| Shaping cycle | 350 seconds | 350 seconds |
| Weight | 22 tons | 22 tons |
| Dimension | 2000*1400*3500 mm | 2000*1400*3500 mm |
Characteristics of Automatic Hot Press Thermoforming Wood Pallet Machines
Automatic Hot Press Thermoforming Wood Pallet Machines is with the features of high precision, high durability, high automation, and better molds design.
1. The raw materials for Automatic Hot Press Thermoforming Wood Pallet Machines are wood leftover materials, which are abundant all over the world. They are scraps of wood, sawdust, wood chips, wood shavings, wood board, branches, wood flakes, and waste pallets, kraft paper, straw, bamboo, and so on. Automatic Hot Press Thermoforming Wood Pallet Machines meets the requirement of environmental protection, which can help to recycle wood leftover materials. Automatic Hot Press Thermoforming Wood Pallet Machines can help solve the problem of the environment and also make profits.
2. Automatic Hot Press Thermoforming Wood Pallet Machines not only can deal with wood leftover materials, but also can produce pallets to gain more value. ThoYu also provides the one-stop solution and the layout of the plant site to pallet production. Normally wood chips and plant straws are the raw materials. ThoYu tested different materials and expanded the ranges. And you can send your raw materials containing fiber to test whether they can be made into pallets.
Product Tags:
|
|

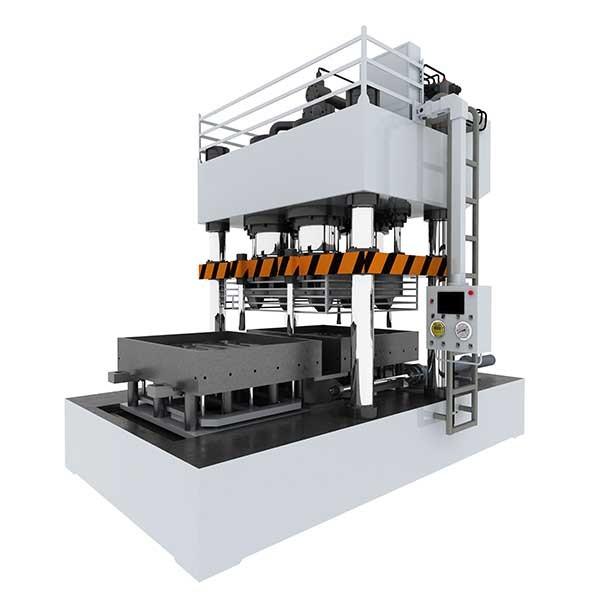

Automatic Hot Press Thermoforming Wood Pallet Machines Images
|
